VT2600 USB-C DP 1.4 Docking Station - Multi Display MST Dock 100W Power Delivery
The VisionTek VT2600 DP1.4 USB-C Docking Station - the ultimate DP Alt mode solution for all your docking needs! Designed for Windows, Mac, and Chromebook systems, this docking station is a plug-and-play solution that makes connecting to external displays and transferring data a breeze. With the ability to effortlessly connect up to three external 4K displays, connect up to 6x USB devices with 10Gbps transfer speeds, fast charge your mobile device and up to 100W USB-C Power Delivery.
- Supports up to 3 Displays (HDMI or DP) via DP Alt Mode
- USB-C connection to host system
- 2x DP, 2x HDMI, 3x USB-A Ports 10Gbps, 3x USB-C 10Gbps, Audio, Ethernet, SD / microSD Card Reader, Kensington Lock
- 100W Power Delivery from included Power Supply
Couldn't load pickup availability
Vietnam
901531
View full details
VT2600 USB-C DP 1.4 Docking Station - Multi Display MST Dock 100W Power Delivery
The VisionTek VT2600 DP1.4 USB-C Docking Station - the ultimate DP Alt mode solution for all your docking needs! Designed for Windows, Mac, and Chromebook systems, this docking station is a plug-and-play solution that makes connecting to external displays and transferring data a breeze. With the ability to effortlessly connect up to three external 4K displays, connect up to 6x USB devices with 10Gbps transfer speeds, fast charge your mobile device and up to 100W USB-C Power Delivery.
- Supports up to 3 Displays (HDMI or DP) via DP Alt Mode
- USB-C connection to host system
- 2x DP, 2x HDMI, 3x USB-A Ports 10Gbps, 3x USB-C 10Gbps, Audio, Ethernet, SD / microSD Card Reader, Kensington Lock
- 100W Power Delivery from included Power Supply
VT2600 - Docking Station
Key Features:
- Compatible with USB-C systems via DP Alt Mode
- Compatible with M1 Mac
- Supports up to 3 external displays

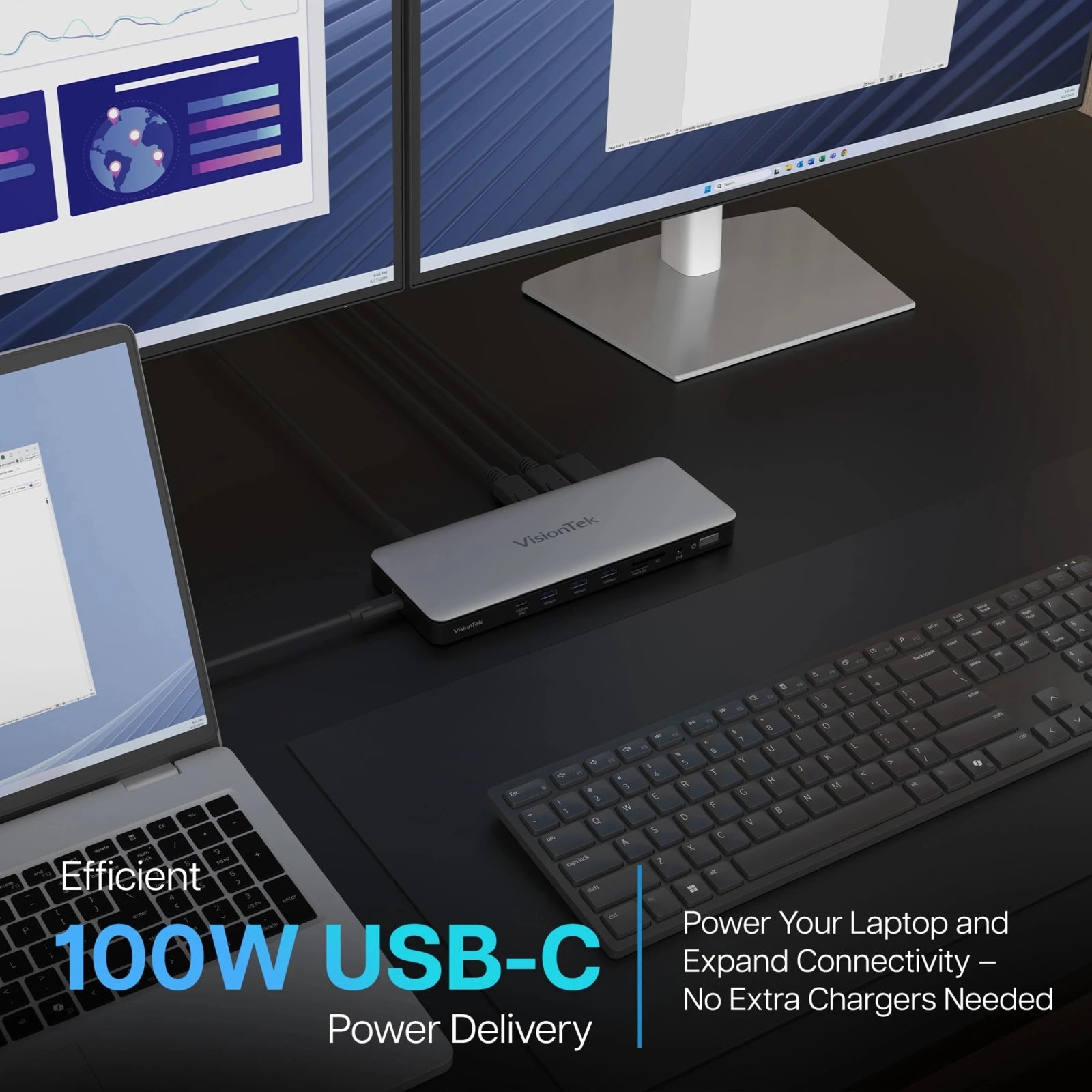

- Up to 100W USB-C Power Delivery*

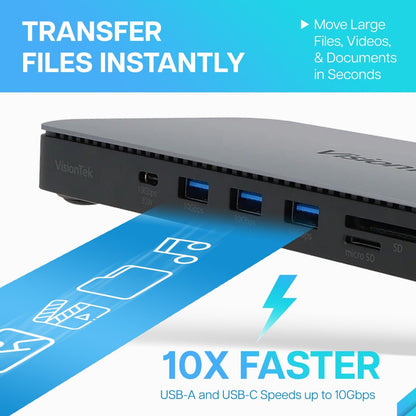

- 3 x USB-A 10Gbps ports
- 3 x USB-C 10Gbps Ports
- 2 x DisplayPort 1.4
- 1 x HDMI 2.0
- 1 x HDMI 1.4
- RJ45 Gigabit Ethernet Port
- Enterprise Features
o Wake on LAN
o MAC Address Pass-Through
o PXE Boot
*Power Supply included
Introducing the VT2600 DP1.4 USB-C Docking Station - the ultimate solution for all your docking needs! Designed for Windows, Mac, and Chromebook systems, this docking station is a plug-and-play solution that makes connecting to external displays and transferring data a breeze. With the ability to effortlessly connect up to three external 4K displays, you'll be able to enjoy crystal-clear visuals like never before. Our lightning-fast transfer speeds of up to 10Gbps ensure that you'll never have to waste time waiting for files to transfer. Plus, with fast charging capabilities for your mobile devices, you'll be able to keep your devices powered up and ready to go. Our advanced docking station streamlines your work setup, allowing you to take your productivity to the next level.

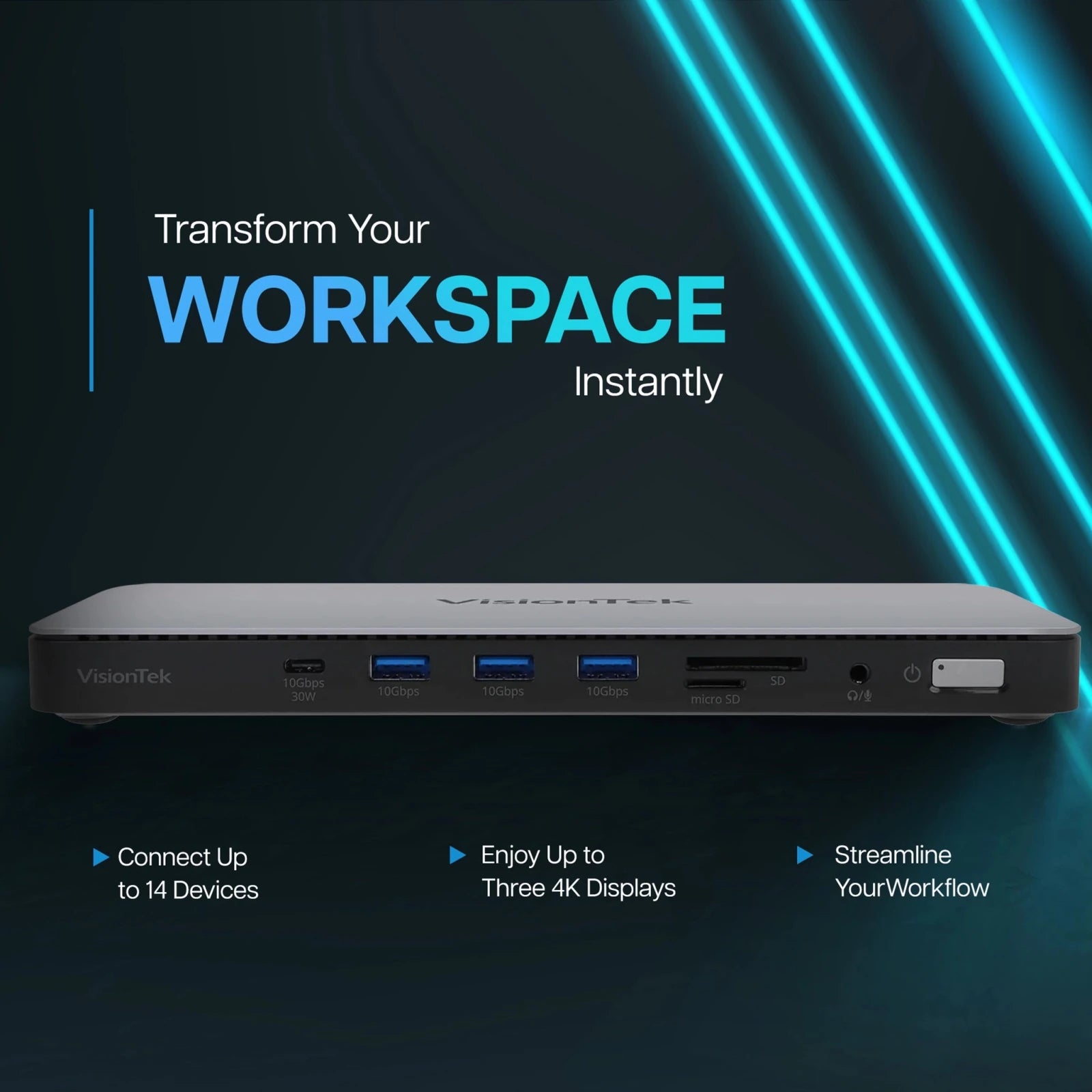

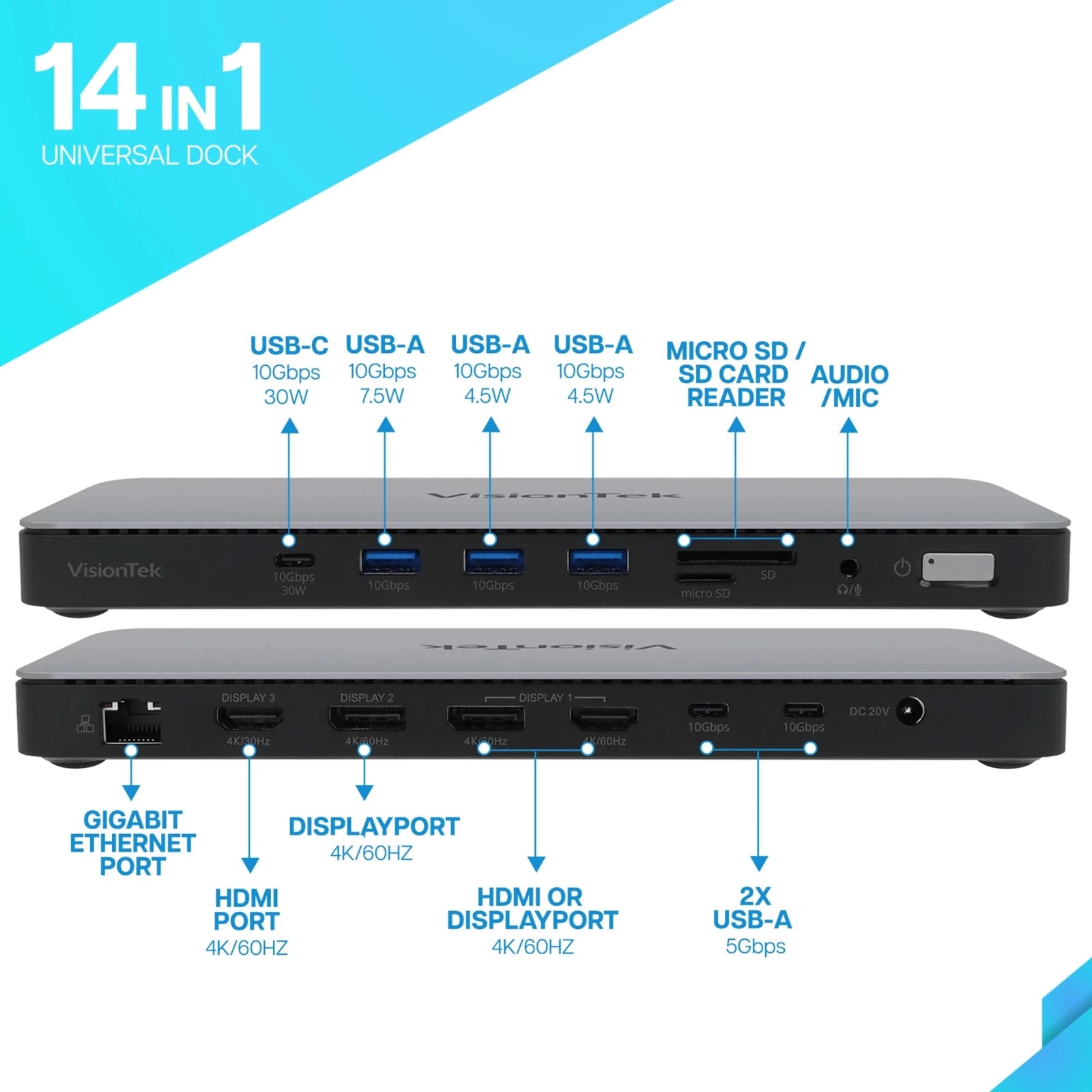

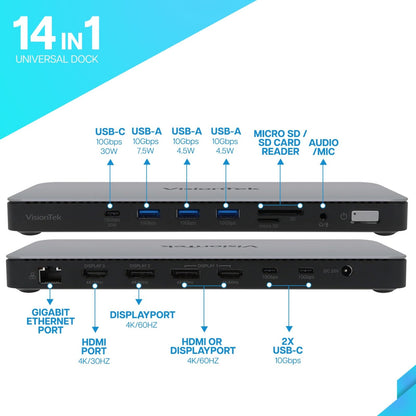

Front Ports:
- 1 x USB-C 10Gbps, 30W PD
- 1 x USB-A 10Gbps, 7.5W PD
- 2 x USB-C 10Gbps, 4.5W PD
- 1 x MicroSD Card Reader
- 1 x SD Card Reader
- 1 x 3.5mm Audio/Microphone Combo Jack
- Power Switch
Side Ports:
- USB-C to System*
- Kensington Security Lock Slot (Standard / Nano)
*Must use included USB-C cable
Back Ports:
- Gigabit Ethernet Port
- 1 x HDMI 1.4 Port
- 2 x DisplayPort 1.4 Ports
- 1 x HDMI 2.0 Port
- 2 x USB-C 10Gbps, 7.5W PD
What's In The Box:
- VT2600 Dock
- USB-C to USB-C Cable
- 150W Certified Power Adapter
- User Manual
Display Outputs Supported:
Single Display Support:
DisplayPort: Resolutions up to 3840 x 2160 @ 60Hz (4K)
HDMI 1: Resolutions up to 3840 x 2160 @ 60Hz (4K)
HDMI 2: Resolutions up to 3840 x 2160 @ 30Hz (4K)
Dual Display Support:
HDMI 1, DisplayPort 1 or DisplayPort 2: Resolutions up to 3840 x 2160 @ 30Hz (4K)
HDMI 2: Resolutions up to 3840 x 2160 @ 30Hz (4K)
Triple Display Support:
HDMI 1, DisplayPort : 3840 x 2160 @ 30Hz (4K)
HDMI 2: Resolutions up to 1920 x 1080 @ 60Hz (FHD)

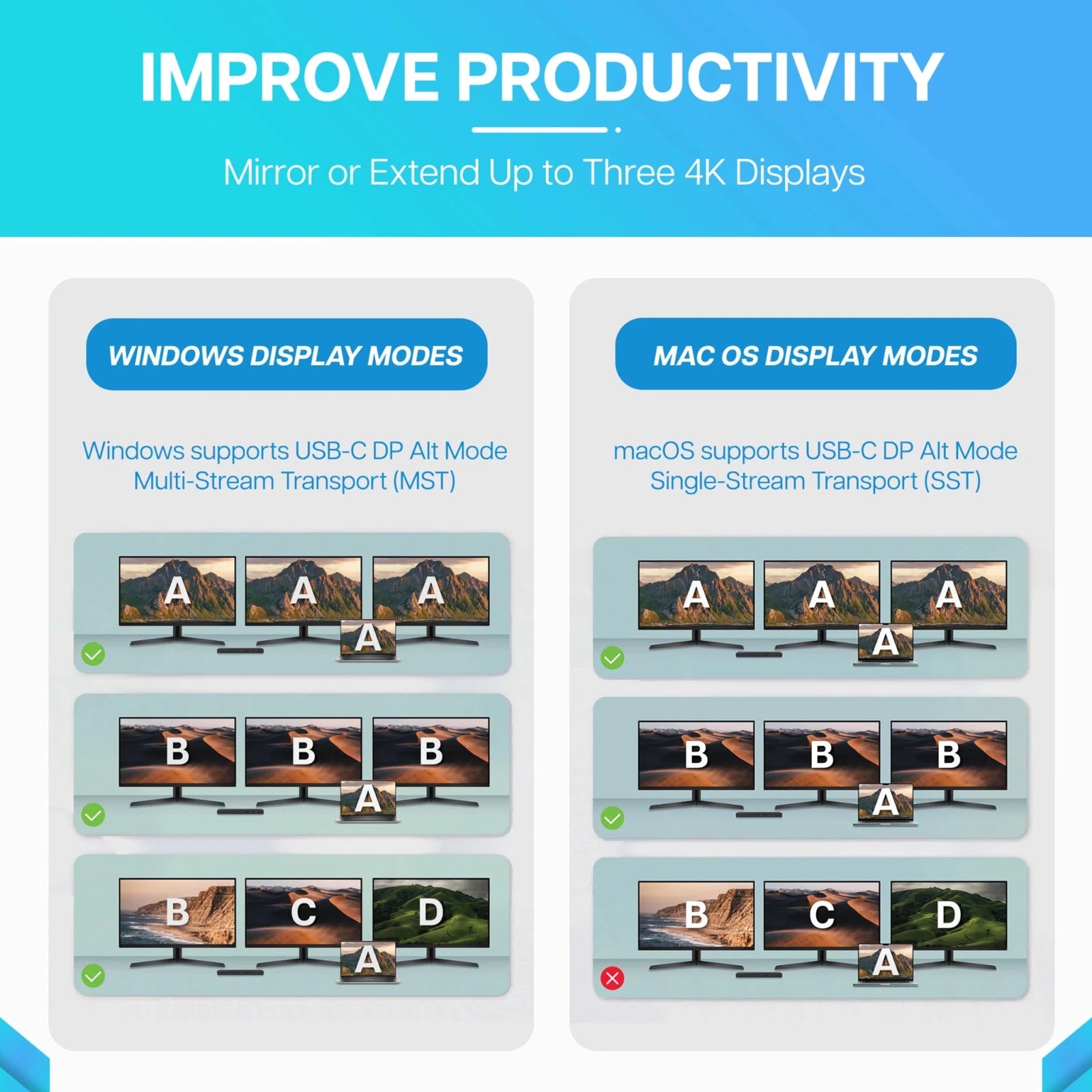

macOS systems support one external display extended and two cloned external displays
Windows systems support up to three external displays extended or cloned
Host System must support DP 1.4 MST with DSC for three extended displays with host screen enabled
| 1 Display | 2 Displays | 3 Displays | |
|---|---|---|---|
| Display Connection | DP1, DP2 or HDMI1 | DP1 +DP2 or HDMI1 | DP + DP + HDMI |
| Host System DP 1.2 MST | 3840 x 2160 @ 30Hz | 1920 x 1080 @ 60Hz | 1920 x 1080 @ 60Hz |
| Host System DP 1.4 MST + DSC | 3840 x 2160 @ 60Hz | 3840 x 2160 @ 30Hz | 3840 x 2160 @ 30Hz (DP1, DP2, HDMI1) 1920 x 1080 @ 60Hz (HDMI 2) |
| Host System macOS SST | 3840 x 2160 @ 60Hz | 3840 x 2160 @ 60Hz1 | 3840 x 2160 @ 60Hz1 |
| Windows 10 Duplicate | Yes | Yes | Yes |
| Windows 10 Extended | Yes | Yes | Yes |
| macOS Duplicate | Yes | Yes | No |
| macOS Extended1 | Yes | 1 Extended + 1 Cloned | 1 Extended + 2 Cloned |
1 macOS systems support one external display extended and two cloned external displays
